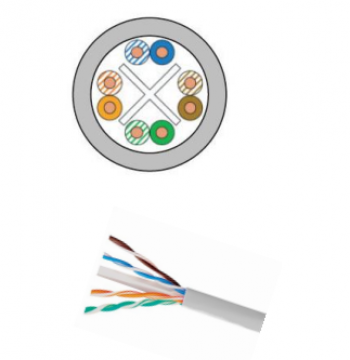

Category 6
• Class E, link/channel up to 250MHz
• Up to 10GBASE-T , 55m max.
• Typical 23/24AWG Solid conductor size
• More stringent in Cross-Talk and system noise
• Used primarily in premises & enterprise
• Unshielded and Shielded version
• CM, CMR and LSZH jacket

• Size: 24AWG
• Type: Stranded bare copper, U/UTP
• Type: PE
• Color: Blue/White, Orange/White, Green/White, Brown/White
• Type: LSZH/PVC
• RJ45 Modular Plug: 100 micro-inch nickel plated + 50 micro-inch gold plated contact
• Termination Coding: TIA 568-B
• Plug Housing:  UL94V-0 rated clear polycarbonate
• Flame retardant:  LSZH: IEC60332-1; IEC60754-1&2; IEC61034; PVC: IEC60332-1

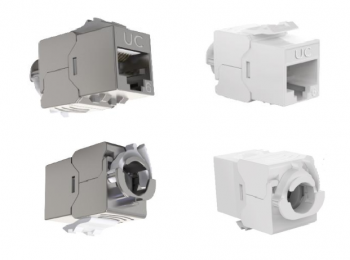

• Interface, Front : RJ45
• Interface, Rear : IDC Insulation Displacement Contact
• Cable Type : Unshielded/Shielded Cable
• Panel Cutout : 14.38X16.02 mm
• Termination Tool : Toolless, Not required Termination tool
• Color : Shielded - Metallic, Unshielded - Back, White, Blue, Yellow, Red, Other by request

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : 2 RU
• Interface, Front : RJ45
• Total Ports : 48 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat Panel
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : 2 Rows Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : 1RU
• Interface, Front : RJ45
• Total Ports : 48 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat, and Foldable Angle
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : 2 Rows, Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : 1RU
• Interface, Front : RJ45
• Total Ports : 24 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat, and Foldable Angle
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : ½ RU
• Interface, Front : RJ45
• Total Ports : 24 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat Panel
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black
